Running In a Rebuilt Classic Engine: Oil, Mileage and What to Avoid

After an engine rebuild, the first few hundred miles decide how well the piston rings bed in, how the camshaft settles and how long the engine will last. The short version: use the running-in oil your engine builder recommends, drive with varied revs and moderate load, change the oil and filter once the running-in period is done, and avoid synthetic oils until the rings have seated. Always follow your builder's procedure over any general guide.

What running in actually does

A freshly rebuilt engine has new or newly honed cylinder walls, new piston rings, and often new bearings, camshaft and followers. None of these surfaces are perfectly matched to each other yet. During running in, the high spots wear away under controlled conditions so the parts mate properly. The piston rings need to bed against the cylinder bore to seal combustion pressure and control oil, and the valve train needs a chance to settle without scuffing.

Two things work against you here. If the surfaces are too slippery too early, the bores may glaze and the rings never seal fully, which shows up later as oil consumption or smoke. If the lubrication is inadequate, parts can scuff before they settle. A good running-in oil balances these.

Choosing a running-in oil

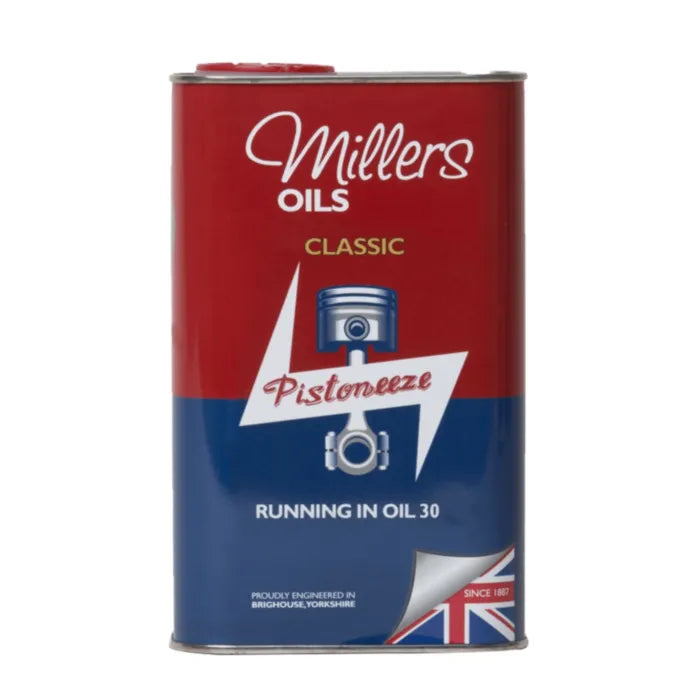

Running-in oils are typically mineral oils with a moderate additive package that protects the valve train while allowing the rings to bed in. A typical example is Millers Classic Running In Oil 30, a mineral SAE 30 oil developed for the first running-in period of rebuilt vintage and classic engines. It is described as protecting the highly loaded parts of the valve train while the piston rings bed in, and Millers Oils describes it as suitable for roughly 500 miles. It is used undiluted.

Points to keep in mind:

• Check the viscosity your engine builder wants. SAE 30 is common for many classic engines, but some builders prefer a different grade.
• Do not use fully synthetic or semi-synthetic oils before the engine is run in. They are so slippery that rings can take much longer to seat, or not seat properly.
• If your engine has a new flat-tappet camshaft, ask your builder whether an assembly lubricant and additional anti-wear protection are needed during the first start-up.

The first start

The first few minutes matter most for the camshaft. Prime the oil system before the first start, and have everything ready (fuel, ignition timing, cooling) so the engine fires quickly without long cranking. With a new flat-tappet camshaft, run it immediately at a fast idle, varying between 2,000 and 2,500 rpm, for the period your builder specifies (commonly around 20 minutes); do not let it drop to idle, as the cam lobes get little oil at idle speed. A roller-cam engine does not need this step. Watch the oil pressure gauge and look for leaks as you go. Shut down immediately if the pressure is low or there are unexpected noises.

How to drive during running in

• Vary the revs. Avoid holding a constant speed on a motorway. Gentle acceleration and deceleration let the rings and bore wear in together.
• Use moderate load. Millers Oils describes loading the engine at maximum torque during running in to help the rings bed in, but this is something to apply carefully and in line with your builder's advice, not as an invitation to push a new engine hard.
• Avoid long idling. At idle the rings see too little pressure to bed in and a flat-tappet cam gets the least splash lubrication; both invite glazing and cam wear.
• Keep it cool. Watch the temperature gauge; overheating in the early miles is one of the worst things that can happen to a new engine.
• Avoid short trips. Repeated short trips in cold conditions allow moisture to build up in the oil. Try to reach full operating temperature each time.

The first oil change

Drain the running-in oil and change the filter once the stated running-in period is done, or earlier if your builder says so. The first oil carries away fine wear particles, assembly residue and metal from the bedding-in process, so it should not stay in the engine. Cut open the old filter, or at least check the old oil and the magnetic drain plug if there is one, for anything unusual. Fine glitter is common; larger pieces are a reason to call your builder.

After that, move to the oil recommended for the engine's day-to-day life. Millers names the Classic Pistoneeze and Classic Sport grades as examples of what to move to; the full range is in our classic oils collection. Our guide to choosing engine oil for a classic car explains how to choose between them. For high-output builds, Kroon Oil Classic Racing Oil 15W-50 is a semi-synthetic option, but check with your engine builder before using it in a freshly rebuilt engine.

What to avoid

• Synthetic oil too early. It can leave bores glazed and rings unseated.
• Additives you have not discussed with the builder. Extra friction modifiers during running in work against what the process is meant to achieve. A ZDDP cam break-in additive is a different thing: it is anti-wear, not friction-reducing, and many camshaft manufacturers require it. Millers quotes a moderate ZDDP level for its Classic Running In Oil, so check with your engine builder.
• Full-throttle runs on a cold engine. Warm up the engine gently before any load.
• Skipping checks. Re-torque, re-check tappet clearances, ignition timing and mixture where your builder advises; a lean mixture or advanced timing in a new engine is a quick way to cause damage.
• Ignoring leaks and noises. A small weep after rebuild is common, but a steady drip or a new tapping noise should be looked at promptly.

Frequently asked questions

How many miles should I run in a rebuilt engine?

It depends on the engine and the builder. Many running-in oils are intended for roughly 500 miles, but follow the builder's schedule.

Can I use my normal classic oil for running in?

Some builders are happy with this, others prefer a dedicated running-in oil. Ask the person who built the engine.

Should I change the filter at the same time as the oil?

Yes. A new filter at the first change is standard practice, because the old one holds debris from the bedding-in period.

Is running in different for an engine on a test bed?

The principles are the same, but the load and rpm schedule is controlled. Follow the engine builder's test-bed instructions and the oil they specify.

Summary

Running in is a short period with long consequences. Use a suitable mineral running-in oil, drive with variety and patience, and change oil and filter once it is done. If your builder gives a procedure, that always comes first. Once the engine is run in and the car is laid up for the season, our winter lay-up oil checklist covers the lubrication side.
